TM21R Series q Modular Jack Connectors for High-Speed LAN Transmission
GUIDANCE FOR MODULAR CONNECTORS

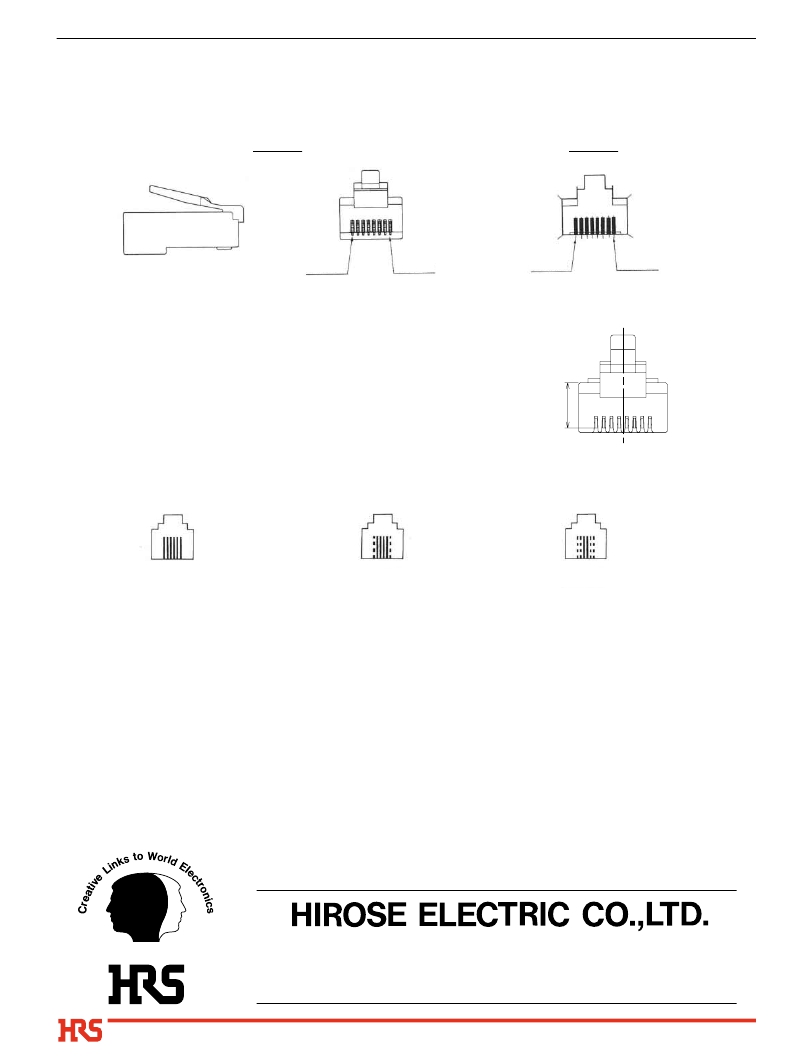

s Modular Connector Terminal Numbers
Unless otherwise specified, see the figures below for the terminal numbers of the product.
Plug
Jack
(mating face)
Contact
No.1
Contact
No.8
Contact
No.8
Contact
No.1
s Attention to Plug Mating
Use only plugs conforming to FCC standards.
FCC PLUG DIMENSIONS
Please pay particular attention to dimensions shown right.
s Opening Size and Number of Conductors(6-Conductor)
See the figures below for the relationship between the opening size and the number of conductors of the jack connectors.
Model 66
Model 64
Model 62
Models 64 and 62 are obtained by removing 1 pin and 2 pins, respectively, from both sides of model 66.For details, please
contact us for drawings because only standard models are shown in the catalogs.
s Recommended Soldering for Modular Dip Connectors
q Flow solder (automatic soldering machine)
Pre-heat : 90 - 130?
Pre-heat time : 120 seconds maximum
Solder temperature : 240 - 260?
Soldering time : 10 seconds maximum
q Hand soldering
Soldering iron tip temperature : 350?
Soldering temperature : 5seconds maximum
Soldering iron output : 30 - 40W
Note: When soldering, use care not to apply excessive force to the connector terminals.
q Recommended Solder composition: Paste, 96.5%Sn/3.0%Ag/0.5%Cu
?
6-3,Nakagawa Chuoh-2-Chome,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN
TEL: +81-45-620-3526 Fax: +81-45-591-3726
http://www.hirose.com
http://www.hirose-connectors.com
12
The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use.
The contents of this catalog are current as of date of 06/2012. Contents are subject to change without notice for the purpose of improvements.
